Overview

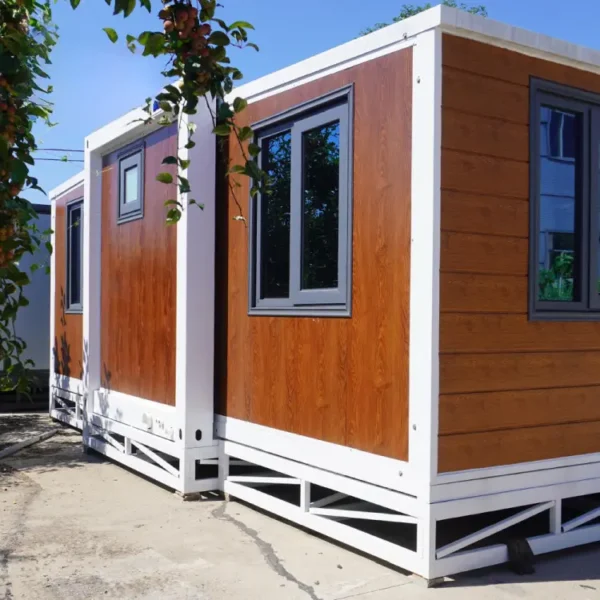

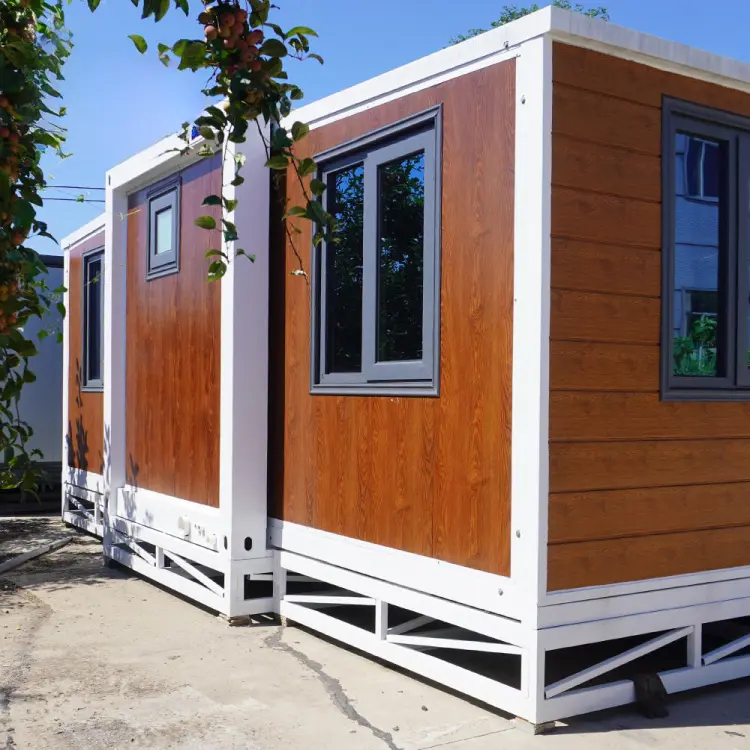

The prefabricated container house is a foldable, expandable, and completely modular building crafted for modern needs. With 37㎡ of internal floor space and a clean one-room layout, it offers a practical and cost-effective housing solution for 2–4 people. Unlike traditional conversions, this structure is not made from shipping containers but is purpose-built using galvanized steel frames and EPS insulation for enhanced durability and comfort.
Key Product Specs
Product Number: 20ft Expandable House
Extended Dimensions: 5900×6300×2480 mm
Internal Dimensions: 5460×6140×2240 mm
Folded Size: 5900×2200×2480 mm
Total Net Weight: 2.8 tons
Floor Area: 37㎡
Living Capacity: 2–4 people
Power Consumption: 12KW
Power Supply: 220V, 50HZ
Structure and Build Quality
The container prefabricated house features a fully galvanized steel structure, making it corrosion-resistant and highly durable. The structural framework includes:
Main Frame Components:
Top/Bottom Side Beams: 80×100×3.0mm square tubes
Top Beams and Columns: 2.5mm thick bending parts
Hanger Heads: Galvanized steel (210×150×160 mm)
Flank Frame:
Top Frame: 40×80×1.8mm P-shaped tubes
Bottom Frame: 60×80×2.5mm square tubes
Folding Hinge: 130mm galvanized steel hinge
This precision-engineered frame ensures that your prefabricated home maintains stability during transport and long-term use.
Exterior and Interior Finishes
To protect and beautify the structure, the integral frame is treated with an electrostatic spray coating in straight white plastic powder.
Roofing: 50mm EPS color steel panel (external)
Ceiling: Type 200 integrated panel
Wall Panels:
Outer Walls: 65mm EPS color steel plates
Internal Partitions: 50mm EPS color steel plates
Flooring:
Base: 18mm fireproof glass magnesium board
Surface: 18mm thick bamboo plywood
These materials give the prefabricated container house superior insulation, fire resistance, and soundproofing while remaining lightweight.

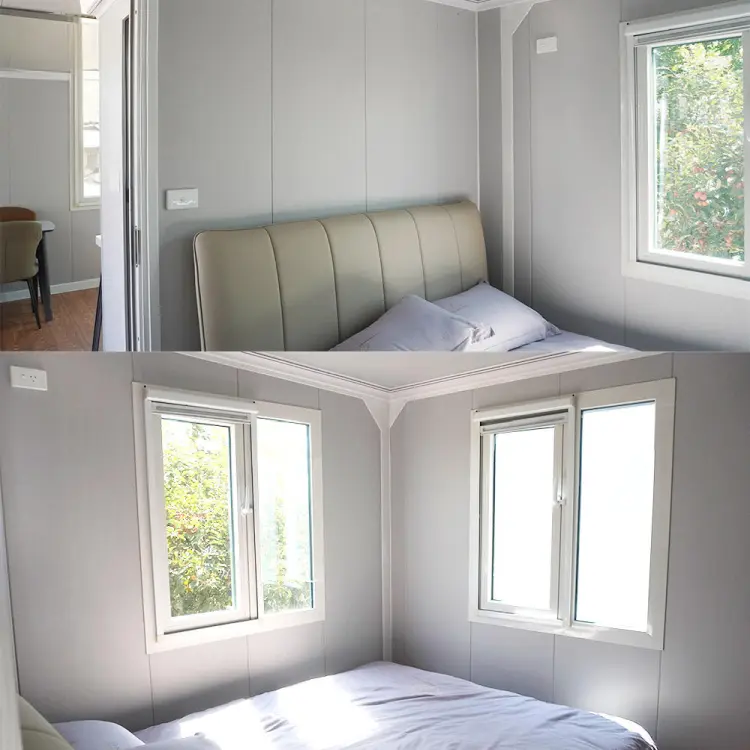

Functional Interior Layout

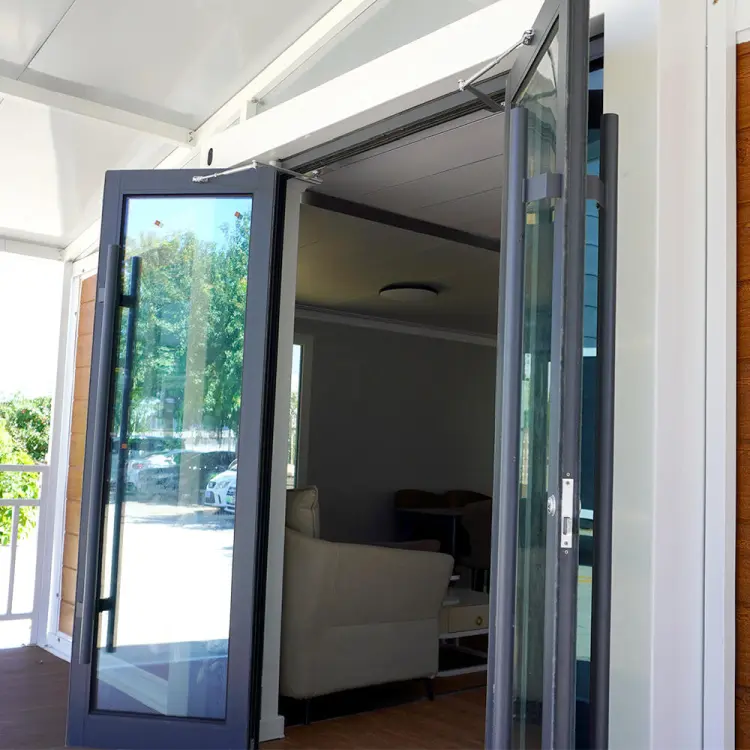

The interior includes a single living room, optimized for flexibility. With four plastic steel windows (920×920mm) and a steel security door (840×2030mm), the space feels open, bright, and secure.

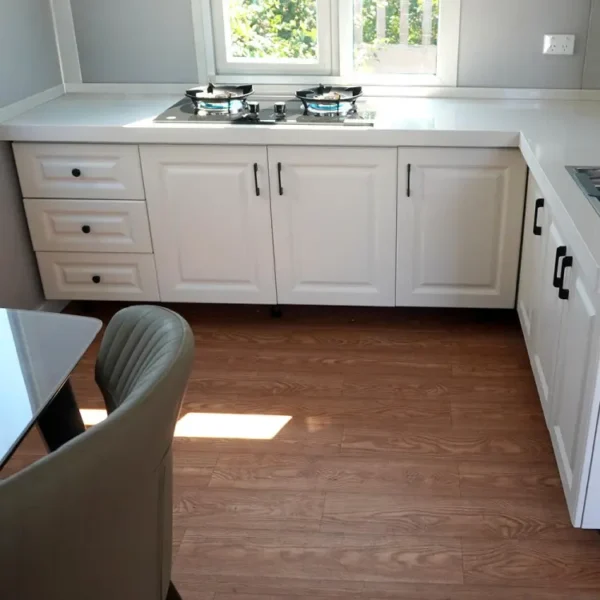

Interior finishing is customizable and may include:
Vinyl or laminate flooring
Curtains, blinds, or wall partitions
Modular furniture (optional)
This makes the container house suitable for both personal and professional applications, from housing units to pop-up stores.
Electrical System
Your prefabricated container house includes a ready-to-use electrical system built to international standards:
Circuit Breaker: 1×20A leakage protector
Lamps: Bull 30×30 flat panel + large ceiling lamp
Sockets: International three-hole and five-hole options
Switch: Double-open, single-key switch
Wiring:
6² for incoming power
4² for AC units
2.5² for general outlets
1.5² for lighting
All systems in the prefabricated container house can be configured to meet local electrical certifications and socket standards.
Mobility and Installation
One of the biggest advantages of this prefabricated container house is its foldable design. It can be collapsed into a compact unit (2200 mm wide) for transport and then expanded on-site.
Transportation: Delivered in 2×40ft high cabinets
Installation Time: Just a few hours with basic tools
Foundation: Can be placed on flat concrete or steel pads
This mobility makes the prefabricated container house ideal for on-the-go setups or temporary deployment in emergency zones.
Applications and Use Cases
Thanks to its compact form factor, durability, and efficient design, the prefabricated container house is suitable for:
🛏️ Temporary housing
🧑⚕️ Mobile clinics
🏢 Remote offices or site accommodation
🌲 Eco-resorts and glamping pods
🧳 Guesthouses or Airbnb rentals
🆘 Disaster relief and emergency shelters
Its strength and ease of use also make it ideal for governments, NGOs, construction firms, and private homeowners.
Included Accessories
Each prefabricated container house includes:
Corner and skirting lines
Waterproof tape
Structural glue and glue gun
Small slings and fasteners
Corner wrapping components
Note: The quoted price includes packaging and loading fees. Tax and shipping are excluded.
Why Choose This Prefabricated Container House?
✅ Built for Longevity: Galvanized steel, fireproof and waterproof materials
✅ Energy Efficient: 12KW system with optimized insulation
✅ Quick Setup: Foldable, expandable, and installable within hours
✅ Secure and Comfortable: Reinforced structure, insulated walls, modern interior
✅ Globally Compatible: Electrical and socket systems customized for your country
From urban expansions to off-grid solutions, the prefabricated container homes delivers safety, flexibility, and efficiency in one smart design
