What Are Modular Shower Blocks?
Modular shower blocks are prefabricated, self-contained units designed to provide washing facilities in temporary or off-grid environments. Built on a 20ft flat pack foldable structure, these blocks are lightweight, durable, and engineered for maximum usability. Unlike traditional steel shipping containers, which may contain rust or structural compromises, our modular units are fabricated from brand-new, galvanized steel and insulated panels tailored for hygienic applications.
These blocks are perfect for use in a wide range of situations, including construction projects, relief camps, oil field sites, military operations, and public events.
for public house ,Flat Pack Homes can meet your needs as well
Structure and Materials
Each modular shower block is housed within a robust 20ft frame made from galvanized steel. The walls and ceilings are filled with high-grade EPS or rock wool insulation, ensuring optimal interior climate control. The floor is covered with waterproof panels and fitted with an integrated drainage system to support continuous water flow and prevent pooling.
Unlike containers retrofitted from maritime use, this unit is manufactured from clean, fresh components free from hazardous coatings or contaminants. The folding mechanism is seamlessly integrated into the frame, allowing for rapid assembly and breakdown.
Design and Layout

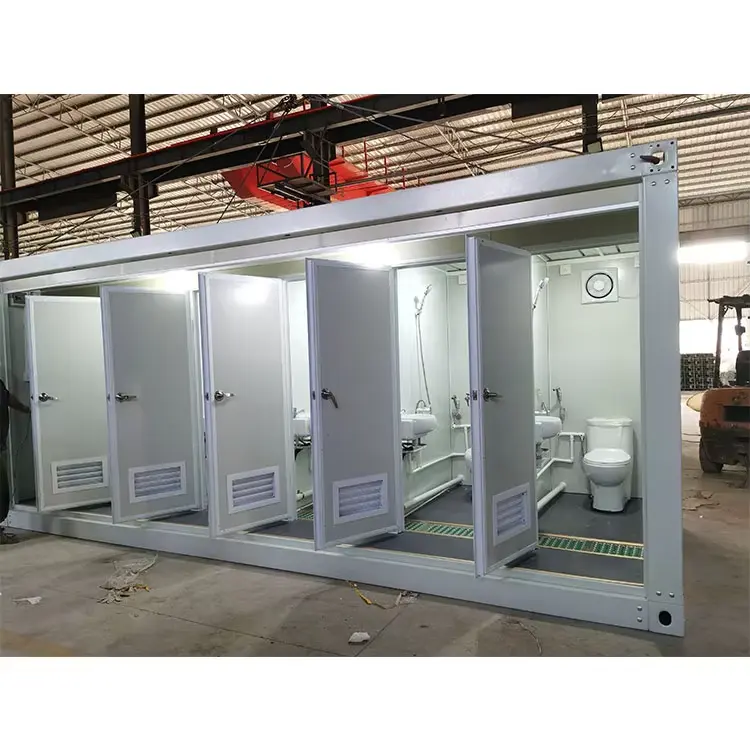

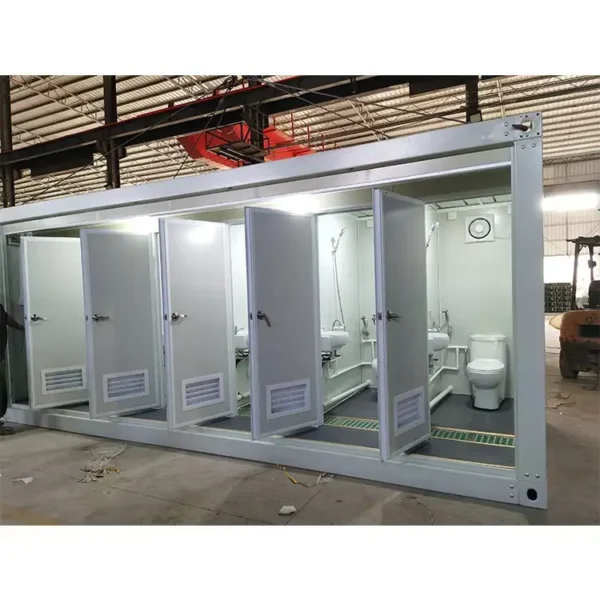

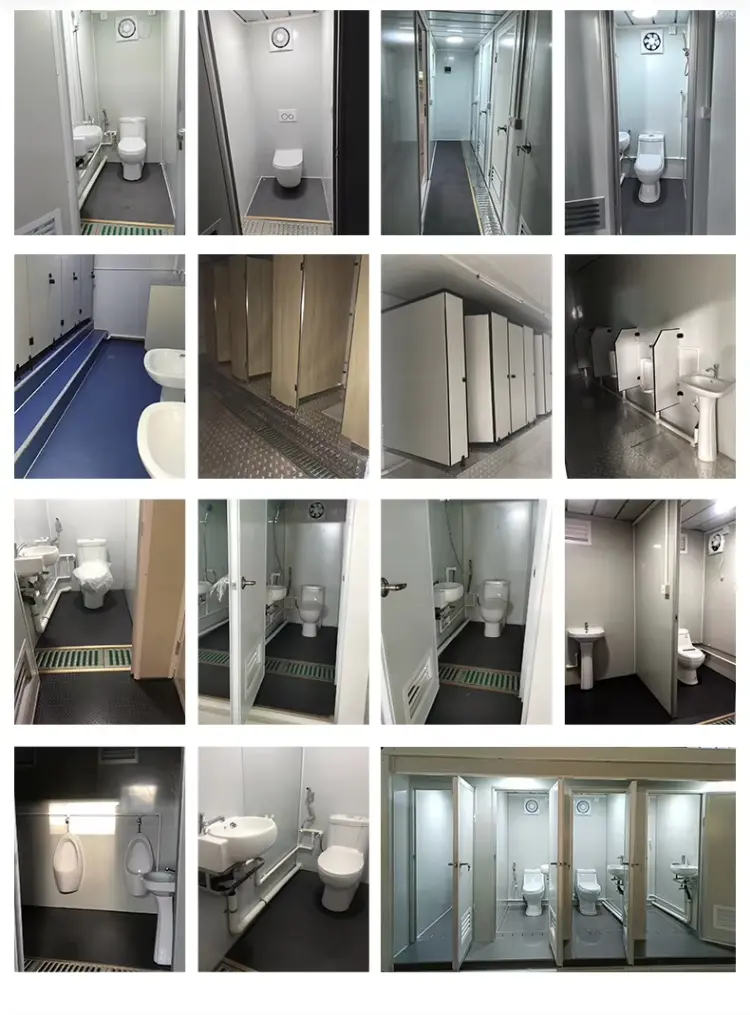

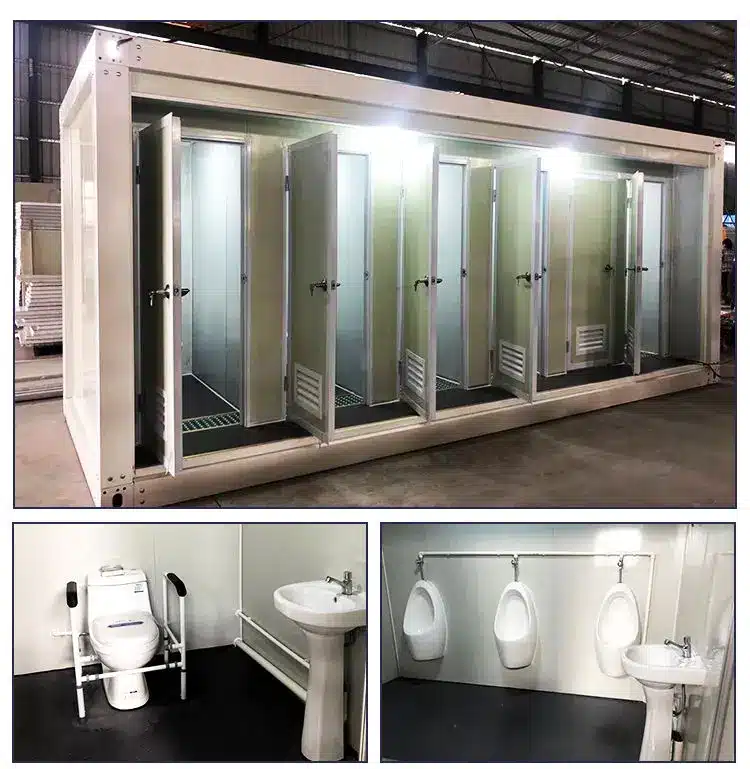

The interior layout of our modular shower blocks is highly adaptable. Standard configurations include:
3 to 6 shower compartments, each with doors for privacy
Non-slip floors with central drainage
Mechanical or solar water heaters, depending on project needs
Ventilation windows or electric exhaust fans to minimize humidity
Optional space for lockers, changing rooms, or dual-function use (shower + toilet)
Modular partitions and wall-mounted accessories allow you to personalize the space depending on user volume or frequency.
Key Advantages of Our Modular Shower Blocks
Fast Mobilization
Delivered in a flat pack, the entire shower block can be unpacked, unfolded, and ready for use within just 3–5 hours. This is particularly useful in crisis zones or projects on tight timelines.Minimal Environmental Footprint
The use of recyclable components and energy-efficient systems reduces waste and lowers the carbon footprint. The flat-pack design also minimizes fuel use during transportation.Resilient in Harsh Conditions
These blocks are designed to withstand extreme temperatures, high humidity, wind, and even snow. The panels are rustproof and treated with anti-fungal coatings, which extend the life of the unit and make it ideal for outdoor installations.Water Efficiency
With smart fixtures and optional low-flow taps, these shower cabins conserve water while maintaining strong pressure for a satisfying user experience.Improved Hygiene and Comfort
Interior surfaces are smooth, sealed, and easy to clean. Wall joints are designed to prevent mold growth, and flooring ensures safety even when wet.
Applications of Modular Shower Blocks
Construction Sites: Ensure workers have access to reliable washing facilities without interrupting schedules.
Field Hospitals & Refugee Camps: Support sanitation and infection control in urgent deployments.
Festival & Camping Grounds: Offer guests a high-quality experience with clean, accessible shower services.
Agricultural Hubs: Maintain hygiene standards for seasonal farm laborers in remote locations.
Military & Oilfield Camps: Portable yet rugged enough to withstand tough environments.
Specifications Table
| Feature | Details |
|---|---|
| External Dimensions | 6058mm × 2438mm × 2591mm (L×W×H) |
| Structure Type | Foldable flat pack unit |
| Frame Material | Galvanized steel with rust-resistant coating |
| Wall Insulation | 50–100mm EPS / Rock wool panels |
| Flooring | Waterproof board with central drainage |
| Plumbing Setup | Pre-installed with hot/cold water lines |
| Electrical Fixtures | LED lighting, ventilation fan, water heater |
| Shower Compartments | 3–6 depending on configuration |
| Assembly Time | 3–5 hours with 2–3 people |
| Lifespan | 10–15 years with regular maintenance |
| Certification | CE, ISO9001, Fire and Water Resistance Rated |
Setup and Deployment
Step 1: Offload the flat pack using a forklift or crane
Step 2: Unfold walls, secure the corners, and raise the roof
Step 3: Connect the plumbing and electrical ports to on-site systems
Step 4: Test all fixtures, drainage, and heating before use
Most clients report full operational readiness within half a day of delivery. Installation guides and virtual support are available for all international buyers.
Maintenance and Service
Regular maintenance is minimal but ensures longevity:
Daily rinse and wipe-downs of interior
Weekly inspections of plumbing connections
Bi-annual checks on structural joints and seals
Filter cleaning and mold prevention treatments
We offer a 12-month warranty with extended service packages for long-term contracts.
Shipping & Packaging
Each modular shower block is securely wrapped for export with:
Steel frame corner protection
Waterproof film and padding
Lifting hooks for safe stacking
Estimated Load:
1×40HQ container can load up to 10 flat-packed units
Lead Time: 10–15 working days
Final Thoughts
This 20ft foldable flat pack solution delivers exactly what users expect from a modern modular shower block: fast setup, durable build, and user-focused comfort. It’s the ideal choice when hygiene, portability, and efficiency must go hand in hand. Whether you’re running a temporary camp or scaling infrastructure quickly, this unit has the flexibility and quality to support your goals — without the risks and limitations of outdated container conversions.
