Introducing the Expandable Tiny Home: A Versatile, Modern Living Space That Grows with You
In the era of sustainable and mobile lifestyles, the Expandable Tiny Home presents an optimal solution for modern dwellers, remote workers, eco-conscious individuals, and mobile project managers. This unit is not made from a shipping container, ensuring a unique fold-out mechanism and design versatility unmatched by repurposed steel box alternatives.
🔧 Dimensions & Capacity

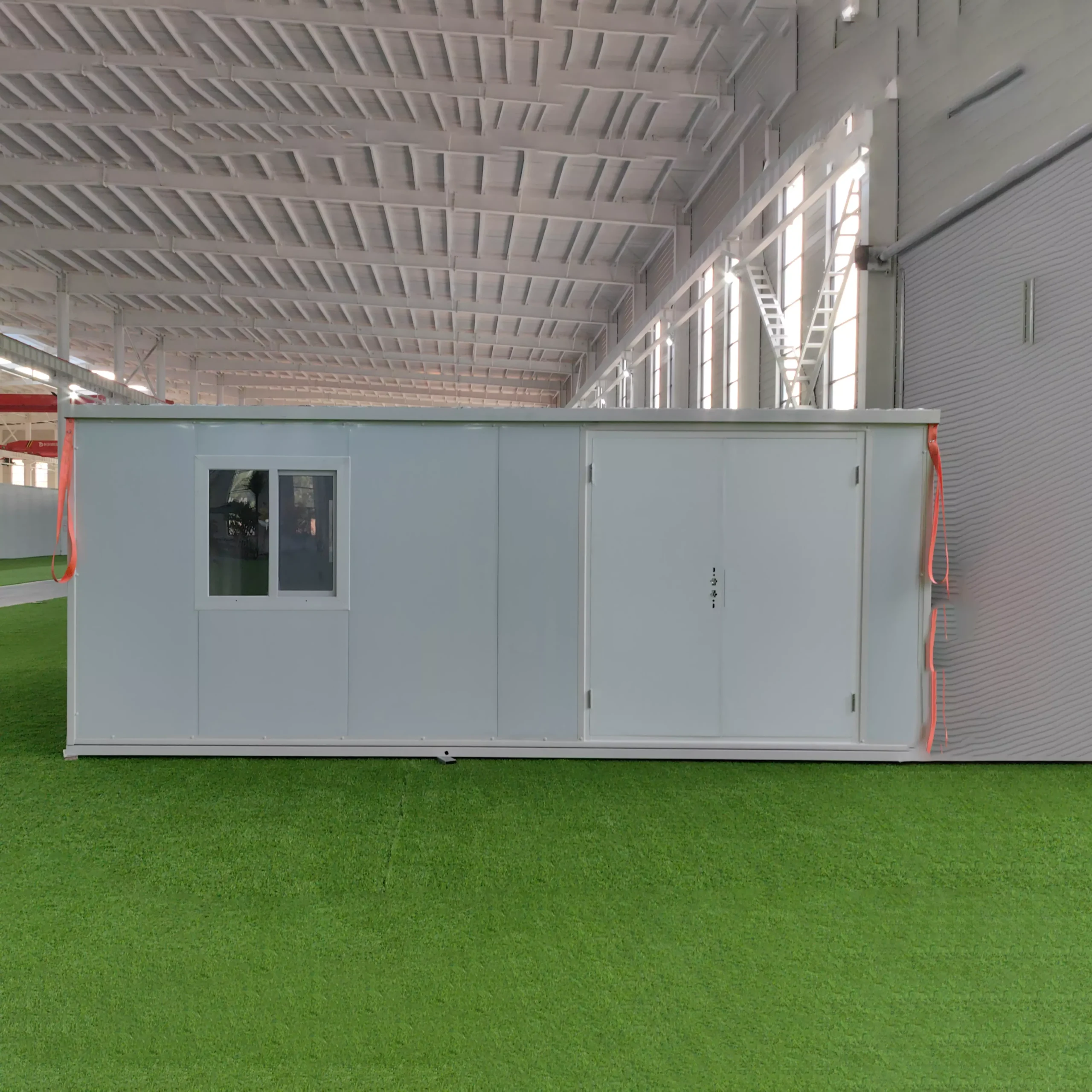

Folded Size: L5900×W700×H2480mm — allowing efficient transport and compact storage

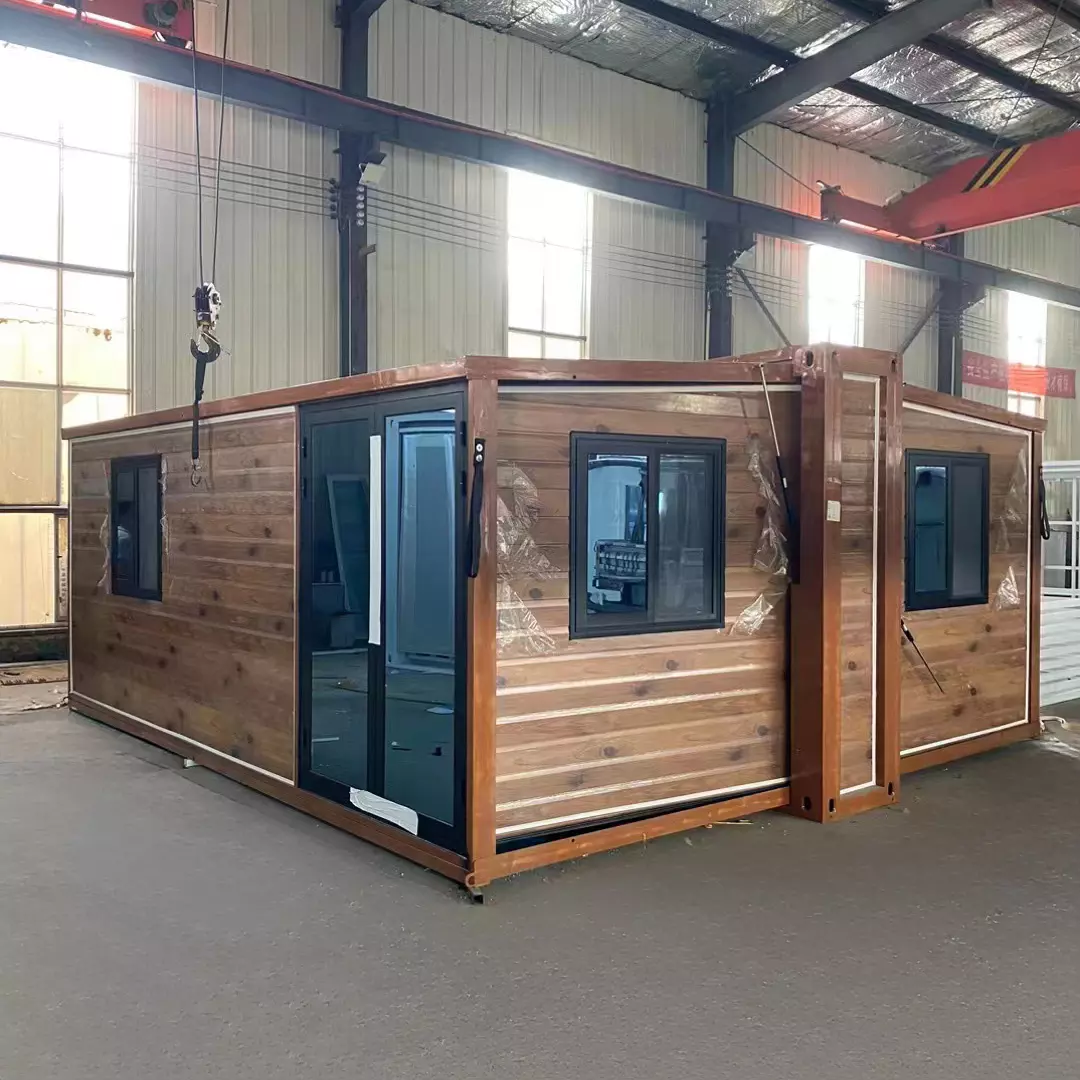

Expanded Size: L5900×W4800×H2480mm — unfolds into a functional home
Internal Dimensions: L5460×W4640×H2240mm — offering generous ceiling height and open layout
Total Floor Area: 27.5㎡ (ideal for 2–4 persons)
Weight: 1.95 tons
The ergonomic design ensures that even when folded, the unit maintains portability while maximizing livable space when expanded.
🏗️ Sturdy Full-Galvanized Framework
This expandable tiny home is built for long-lasting strength using:
Main Frame:
Top & bottom beams: 80×100×3.0mm square galvanized steel tubes
Galvanized hanger head: 210×150×160mm
Steel columns and bending parts: 2.5mm galvanized profiles
Side Frame:
P-shaped tube (40×80×1.8mm)
Bottom support: 60×80×2.5mm square tubes
Folding Hinge: 130mm galvanized hinge
All structural components are electrostatically sprayed in straight white plastic powder, ensuring weather resistance and corrosion protection.
🧱 Wall, Floor & Roof Panels
The expandable tiny home features layered protection for comfort, insulation, and safety:
Exterior Roof: 50mm EPS color steel plate
Ceiling Panels: Type 200
Side & Rear Wall Panels: 65mm EPS sandwich construction
Inner Partitions: 50mm EPS panels
Floor Structure:
Fireproof glass magnesium board (18mm thick)
Bamboo plywood on both sides (18mm thick)
These materials enhance fire resistance, moisture protection, thermal insulation, and acoustic isolation.
🚪 Doors & Windows
1 x Steel Door: 840×2030mm for secure entry
4 x Plastic Steel Sliding Windows: 920×920mm for ample daylight and ventilation
⚡ Integrated Electrical System
Tailored for global users, the unit comes pre-installed with a complete electric setup:
Power Consumption: 12KW | 220V | 50HZ
Circuit Breaker: 1 x 20A leakage protector
Lighting: 30×30 flat-panel LED lamps
Sockets: Standard international 3-hole and 5-hole sockets (can be customized per region)
Switches: Double-open and single-key switches
Wiring:
6² incoming wire
4² for A/C
2.5² for general outlets
1.5² for lighting
All circuits can be adapted to meet country-specific safety certifications, making this expandable tiny home suitable for global markets.
🧰 Accessories Included
Each unit is shipped with full accessory kits:
Corner and skirting lines
Waterproof sealing tape
Structural glue + glue gun
Small lifting slings
Hinges and fasteners
Packaging and loading fees are included, but taxes and shipping are not.
🚛 Shipping Information
1 x 40HQ Container = 6 sets of 20ft Expandable Tiny Homes
Designed for efficient overseas transport and fast on-site assembly
🏡 Ideal Usage Scenarios
Remote Work Cabins: Comfortable spaces for digital nomads
Emergency Shelters: Rapid-deployment housing after natural disasters
Vacation Homes: Stylish second homes near nature or the beach
ADUs: Auxiliary Dwelling Units for backyard guest houses or rentals
Mobile Offices: On-site workspaces for construction or events
🌍 Sustainable, Smart Living Without Shipping Container Origins
Unlike traditional modular housing or converted containers, this expandable tiny home is purpose-built using foldable architecture. Its expandable core eliminates the boxy constraints of shipping containers while offering similar mobility advantages.
Designed with environmental awareness in mind, materials like EPS insulation, fireproof flooring, and recyclable galvanized steel contribute to lower carbon impact during construction and operation.

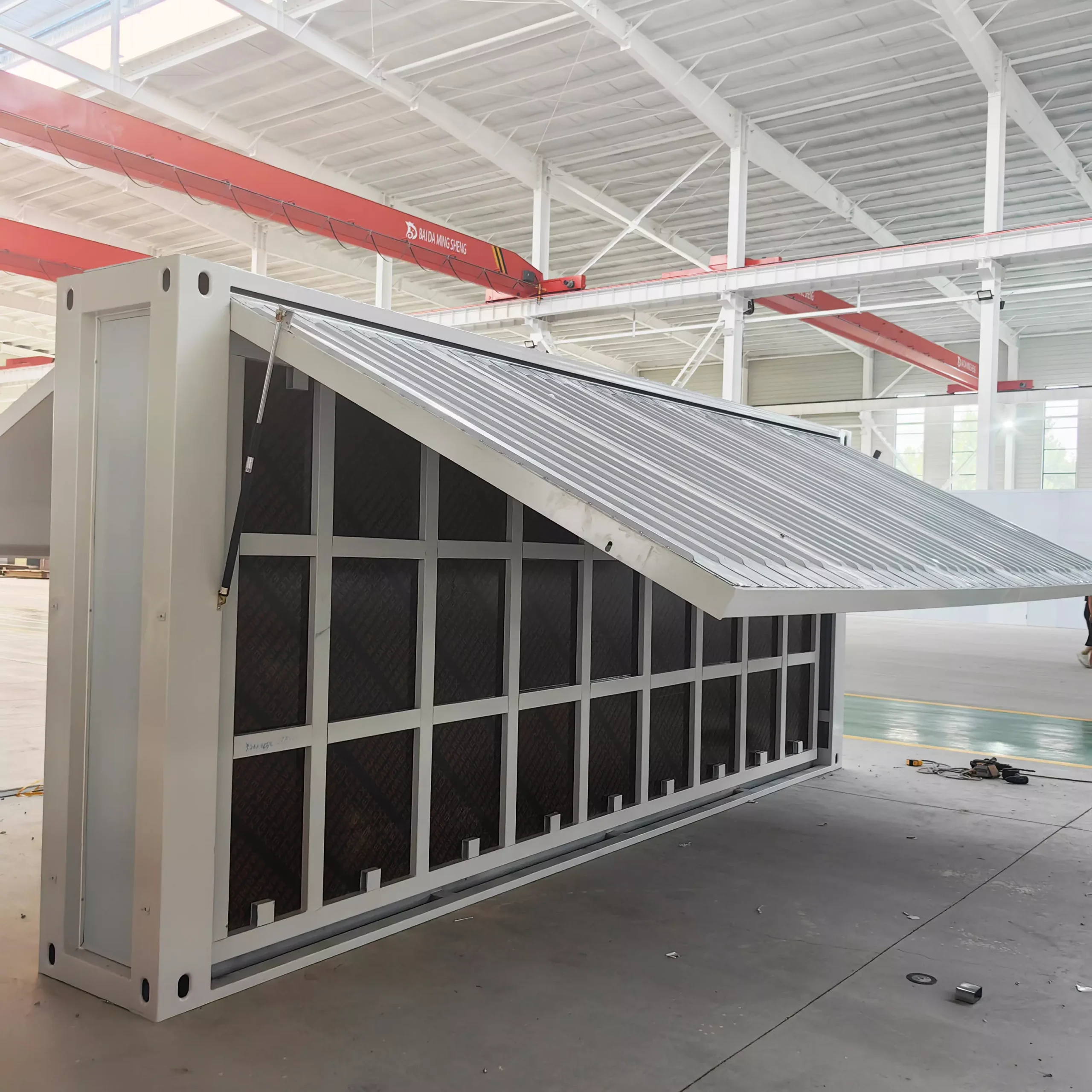

🔄 Quick Installation & Portability
No foundation? No problem.
This expandable tiny home can be set up within hours on level ground — no heavy tools or cranes needed. Its intuitive unfolding mechanism makes it perfect for temporary or permanent installations. And when it’s time to move, simply fold it back and relocate.
✅ Key Benefits Recap
🚚 Transport-ready foldable design
🧱 Durable full-galvanized steel structure
💡 Pre-wired with customizable electrical system
🛋️ Comfortable space for 2–4 people
🧰 Packed with accessories for easy setup
🌿 Insulated and fire-resistant materials
🔧 Not made from shipping containers — no rust or boxy limitations
🌐 Globally shippable, 6 sets per 40HQ container
