In the search for housing that is both mobile and spacious, the 40 foot expandable container homes concept stands out. Unlike repurposed shipping boxes, these units are engineered from the ground up to ride inside a standard 40 ft logistics envelope yet unfold on site to 76 m² of code-compliant living space. Below you will find a complete technical and lifestyle guide to the 40 foot expandable container homes platform, so you can decide if it is the right solution for your backyard office, off-grid retreat or scalable community project.
- Design philosophy

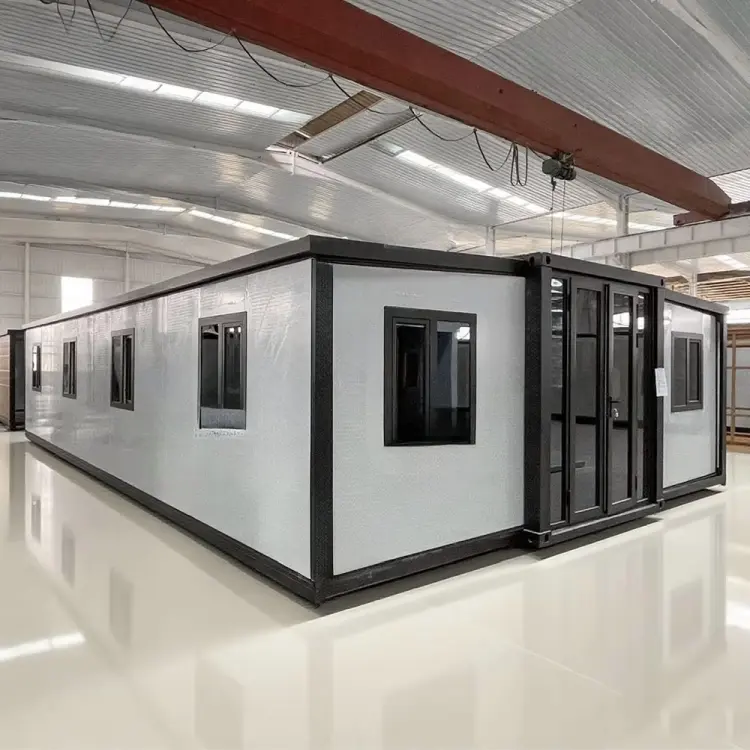

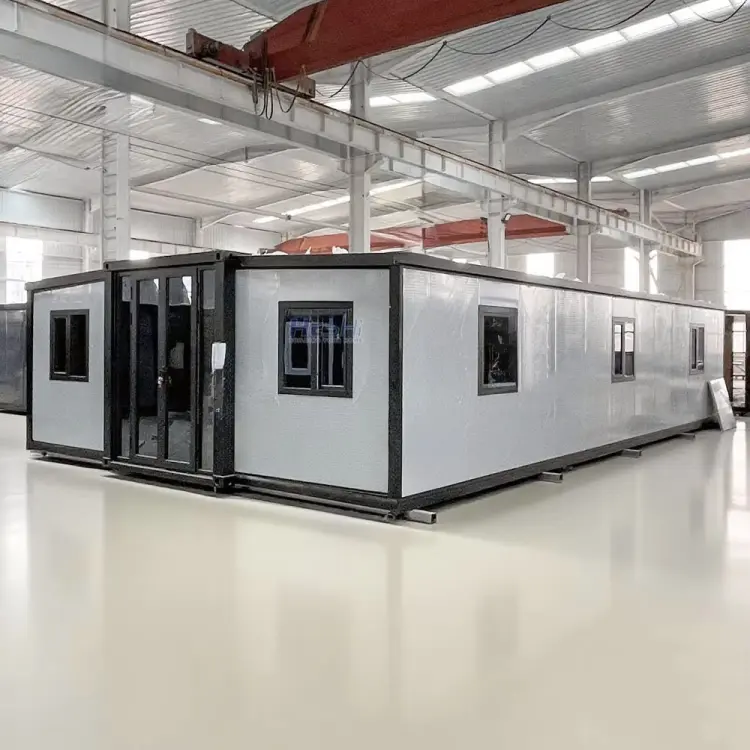

Traditional container conversions feel narrow because they inherit 2.44 m internal width. The 40 foot expandable container homes system starts with a clean-sheet light-gauge galvanized frame that adds 3.6 m width during deployment. Finite-element analysis confirms 300 % safety factors under 150 mph wind loads, so the expanded 40 foot expandable container homes module behaves as a rigid moment frame. - Core specifications
• Shipping envelope: 12 192 mm L × 2 438 mm W × 2 591 mm H (ISO 1CC)
• Expanded footprint: 12 192 mm L × 6 055 mm W × 2 591 mm H
• Gross floor area: 76 m² including 18 m² fold-out deck
• Dry weight: 7 200 kg ± 3 %
• Frame: 2.75 mm galvanized G450 steel, 350 MPa yield, e-coat + polyester powder
• Wall build-up: 0.5 mm embossed aluminum rainscreen, 30 mm cavity, 150 mm graphite-EPS SIP (λ = 0.028 W/m·K), 12 mm MgO board, 15 mm acoustic mineral wool, 13 mm gypsum or birch plywood finish
• Roof: R-35 polyiso, cool-roof TPO membrane, 1 % slope to scuppers
• Floor: 18 mm OSB on EPDM tray, 175 mm closed-cell spray foam (R-30), 19 mm fiber-cement underlay, 14 mm bamboo or porcelain tiles
• Windows & doors: Triple-glazed (U = 0.9) aluminum thermally broken frames; 2.4 m lift-slide patio door doubles as expansion joint seal
• Wind & seismic: 150 mph (67 m/s) 3-s gust, seismic design category D, IBC 2021 - Expansion mechanism
Press the green button and two 36 V DC linear actuators, backed by a 1.5 kWh lithium-iron-phosphate pack, draw the side walls outward along sealed roller bearings in 8 minutes. Tongue-and-groove aluminum floor plates pivot down and lock with stainless pins rated 5 kN shear each. A 360° EPDM gasket compresses to IP65, validated under 15 Pa cyclic pressure in Miami-Dade lab. Four corner jacks level the 40 foot expandable container homes unit within ±5 mm tolerance. - Interior layout flexibility

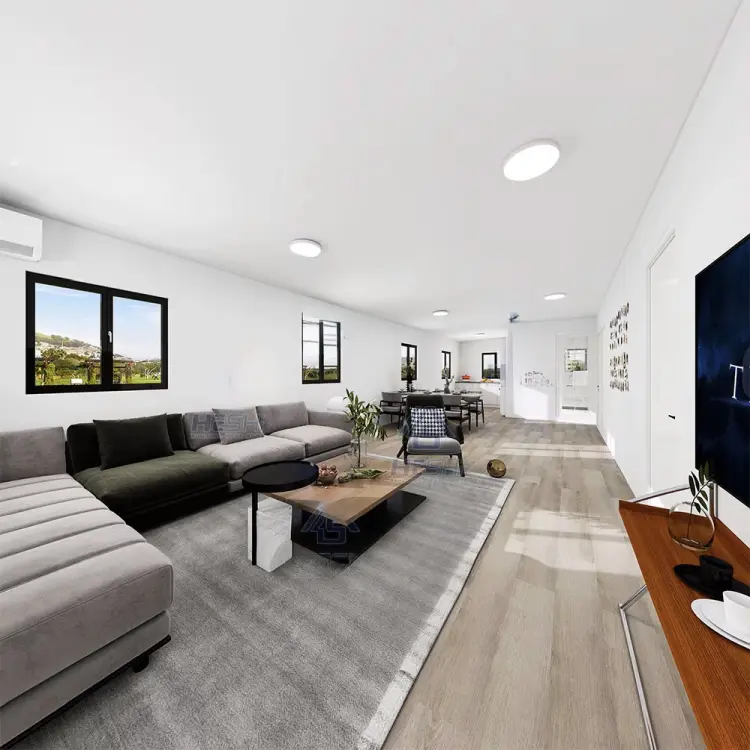

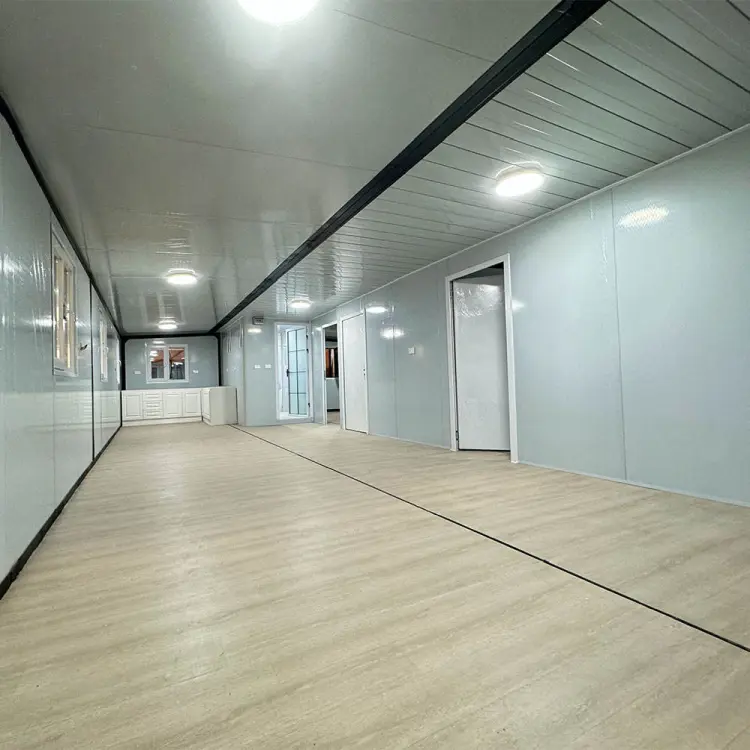

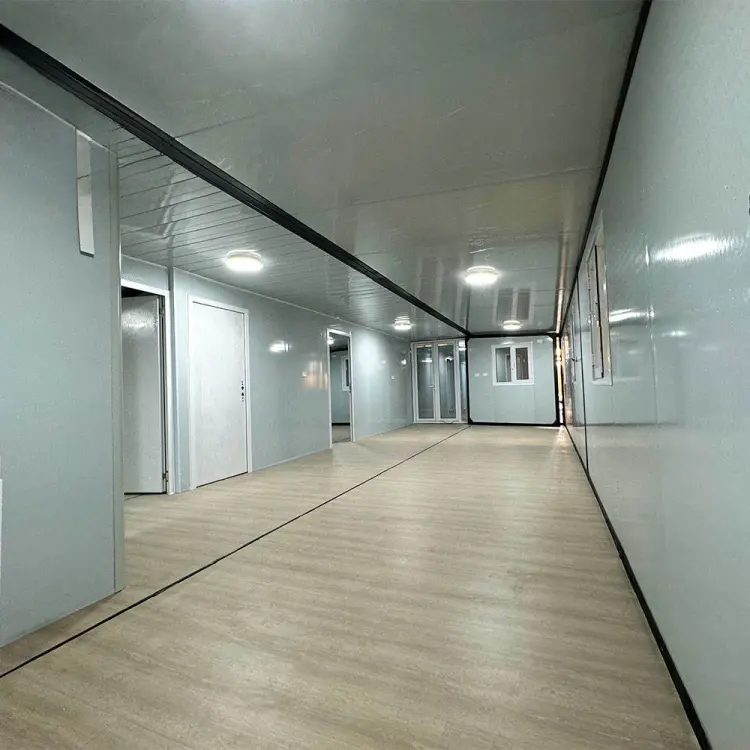

The 40 foot expandable container homes platform ships with an aluminum track grid recessed into floor and ceiling. Panels of 19 mm plywood or aluminum honeycomb can be repositioned tool-free, enabling:

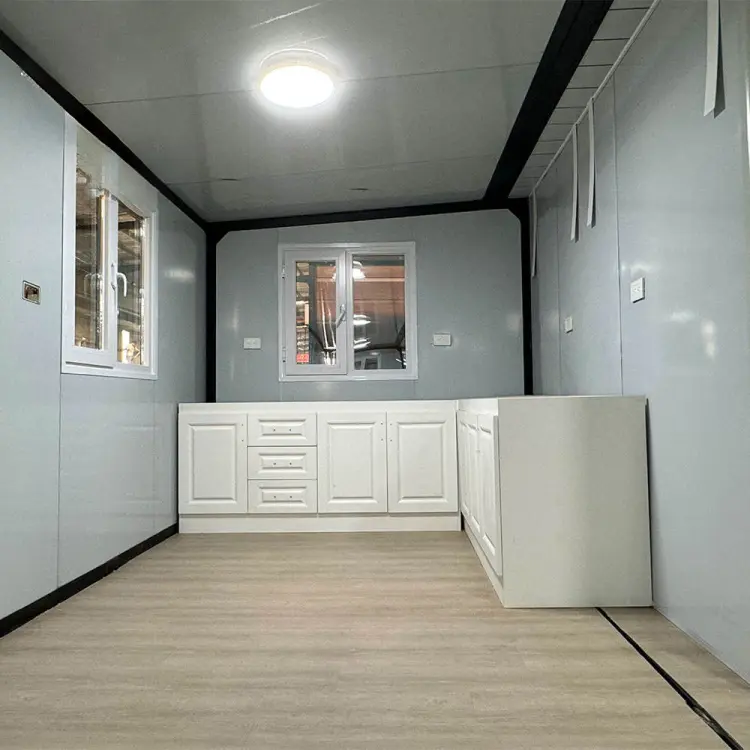

A. Studio loft: 58 m² open plan with concealed kitchen & wet bath

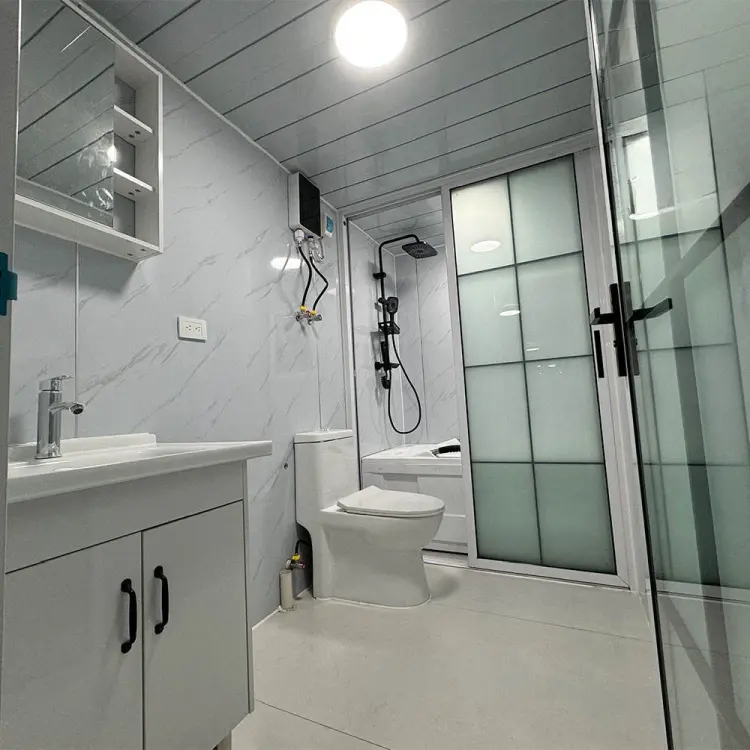

B. 1-Bedroom: 45 m² living + 15 m² bedroom + 8 m² bath + 8 m² laundry niche
C. 2-Bedroom: 30 m² living, 2 × 13 m² bedrooms, 8 m² bath, 12 m² kitchen/dining
D. Office: 58 m² co-working, two phone booths, 2.8 m standing desks, 8 m² kitchenette
All plumbing and electrical lines terminate at color-coded quick-disconnect manifolds under the kitchen island, so walls move without cutting or soldering. Magnetic LED strips snap into the same ceiling track. - Energy & utilities
The envelope achieves 0.17 W/m²·K overall U-value. A 5 kW roof PV array feeds a 15 kWh rack-mounted battery that slides into an exterior compartment. A 1.2 kW cold-climate mini-split covers −25 °C to 50 °C. An optional 300 L heat-pump water heater fits beneath the bathroom counter and can harvest grey-water heat. Main 40 A inlet accepts shore, generator or micro-grid. A 750 L fresh tank and 450 L black/grey combo tank strap underneath for 10-day off-grid autonomy. - Sustainability metrics
Life-cycle assessment shows 41 % lower embodied carbon versus site-built timber frame of equivalent area. Factory waste is 1.2 % versus 12 % typical. All finishes are low-VOC and CARB Phase 2. Steel frame is 100 % recyclable, SIP panels separable into metal skins and EPS core for closed-loop regrind. Interior plywood is PEFC-certified. - Transportation & site logistics
Classified as “non-habitable load” during shipping, the 40 foot expandable container homes module rides on standard 40 ft flat-rack, Ro-Ro or container vessel. Corner castings meet ISO 1161. Offload requires 40 t mobile crane or 15 t forklift. Four integrated twist locks allow stacking up to 3 high for hotels or workforce camps. If road width is restricted, the folded 40 foot expandable container homes unit can be towed on low-bed trailer at 4.2 m overall height. - Regulatory approvals
Engineering drawings are pre-stamped for IBC 2021, IRC 2021, Florida HVHZ, California Title 24, Canada NBC. Factory-installed data plate lists wind, snow and seismic loads. Electrical panels are UL 67; plumbing IPC 2021. Optional NFPA 13D sprinkler package. CE marking covers EN 1090-1 and EN 12810. Because it is not made from shipping container, the 40 foot expandable container homes system avoids container conversion grey zones. - Installation timeline
Day 0: Pad leveled, utilities stubbed
Day 1: 40 foot expandable container homes module arrives, offload and expand (2 h)
Day 2: Connect sewer, water, power (4 h)
Day 3: Fit-out inspection & furniture install (optional)
Total labor: 12 person-hours versus 450–650 h for stick-built equivalent. - Pricing & financing
Base price ex-works Shenzhen or Houston is $42 900 for 76 m² shell with finished kitchenette and bath. Add $8 900 for PV + battery, $3 200 for premium interior, $1 500 for hurricane shutters. Shipping to Los Angeles port $2 800; to Rotterdam $3 600. Financing partners offer 6.5 % APR over 10 years or 0 % APR over 30 months. Bulk orders of 10+ 40 foot expandable container homes units unlock 9 % discount plus dedicated project manager. - Warranty & support
• Structural frame: 10 years worldwide
• SIP panels & roof membrane: 25 years pro-rated
• Electrical & plumbing: 2 years, extendable to 5
• Remote diagnostics via 4G IoT gateway; firmware OTA
• Global service network with technicians in 44 countries; 48 h response target - Case studies
• Palm Springs, California: off-grid casita running 120 % solar offset; interior temperature swing <2 °C at 45 °C ambient
• Trondheim, Norway: stacked 4-high student housing tied to district heating, 38 kWh/m²·yr EUI
• Nairobi, Kenya: 36-unit emergency clinic deployed in 96 hours after flood, later converted to classrooms
• Queenstown, New Zealand: ski lease generating $4 100 NZD weekly in peak season
• Austin, Texas: backyard recording studio with floating floor, 35 dB noise reduction vs neighborhood - Future-proofing
The 40 foot expandable container homes platform is designed for modular growth. Add a second module perpendicular for L-shape courtyard, or bridge two with 8 m polycarbonate atrium. Roofs accept additional 7 kW PV, green-roof trays or lightweight steel mezzanine. Frame over-engineering (300 %) allows mounting 2 000 L rainwater tank or outdoor kitchen pergola without reinforcement. - Conclusion
From the instant the walls glide outward to reveal 76 m² of bright, insulated, fully wired living space, you will understand why engineers nickname the 40 foot expandable container homes product “a house that folds like a suitcase.” It compresses for global travel, expands for human comfort and scales for communities—without the baggage of repurposed shipping containers.
